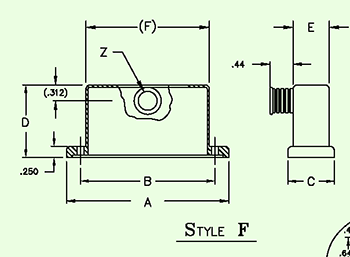

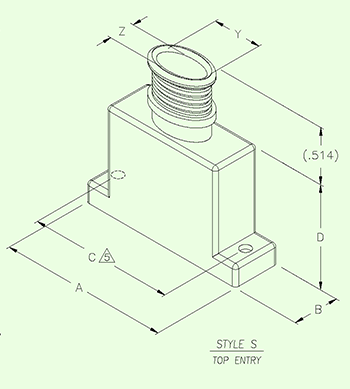

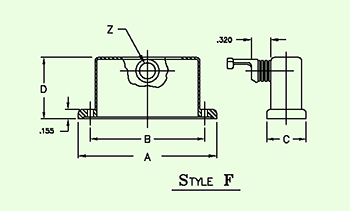

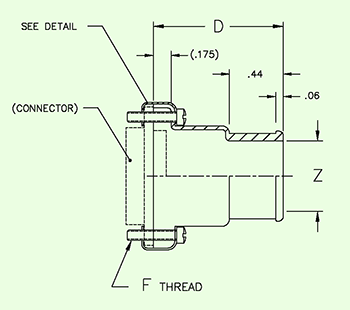

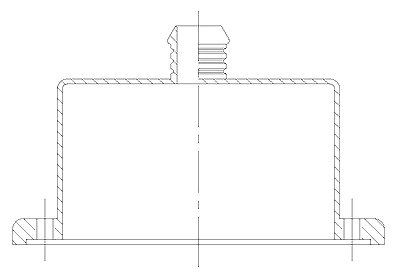

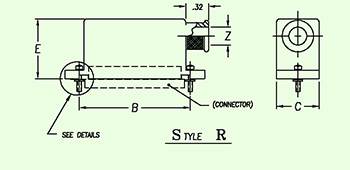

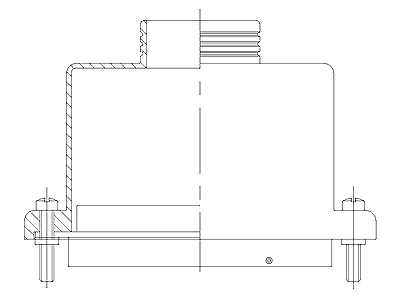

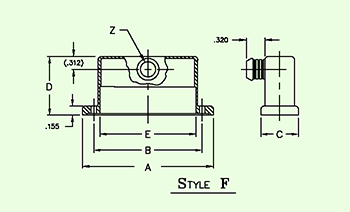

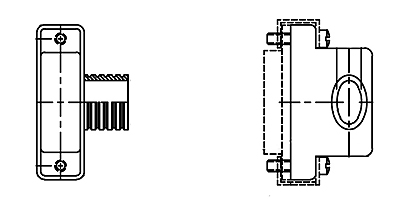

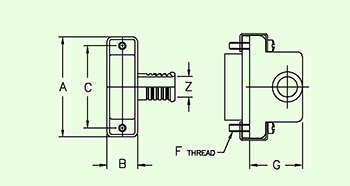

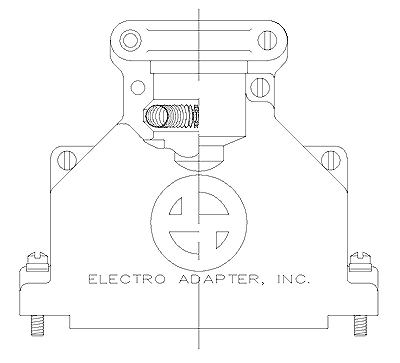

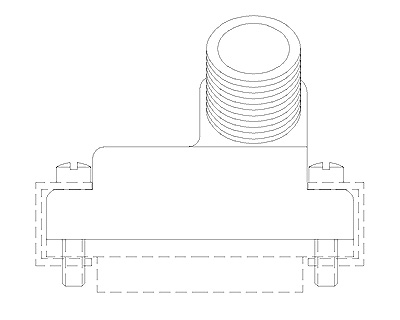

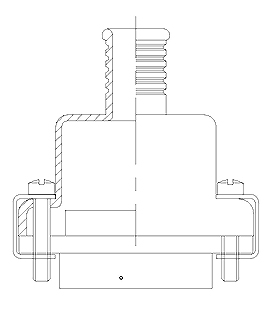

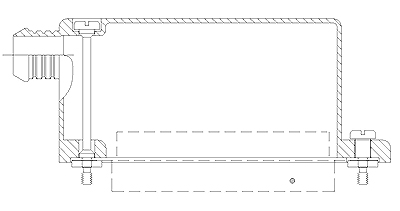

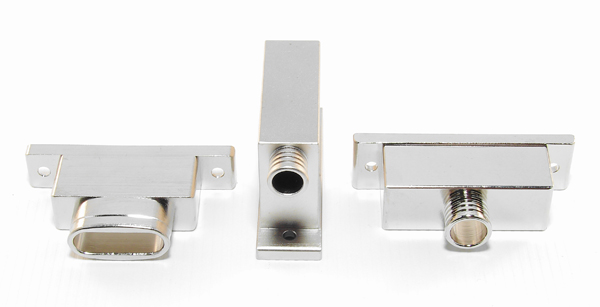

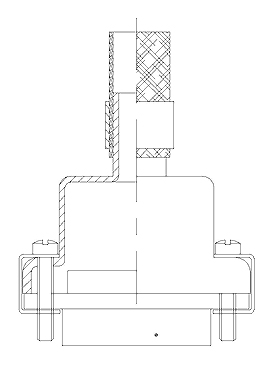

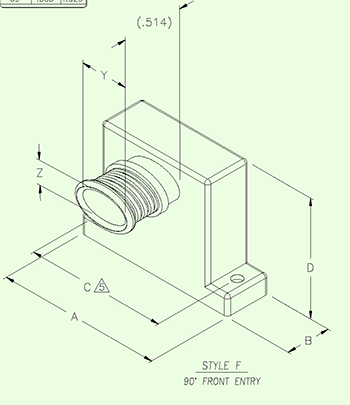

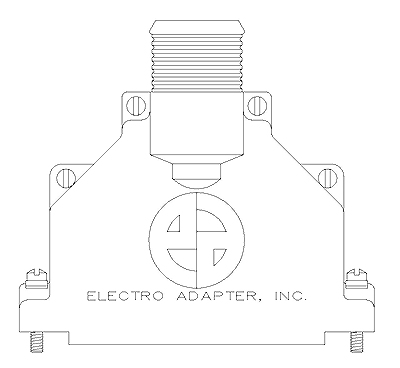

This section presents standard connector adapters for D-Subminiature (Mil-DTL-24308), Micro-D Subminiature (Mil-DTL-83513) and ARINC (MIL-DTL-81659) connectors. Solid and split-shell designs are specified with various mounting screw and mounting screw retention options. EMI/RFI Gasket versions are included. These designs encompass straight, 90°, 45°, and 45°-offset configurations, single and dual entries, and oval banded terminations. The oval entry backshell designs allow for additional wire space or insulation. The 90° configurations offer both side and face mounted entries. Consult factory for other designs, including magnaform and crimp-ring shield sock terminations.

MICRO'D
